Hybrid Harmonic + Cycloidal Drive 5th Axis Rotary Table with ±110 deg Tilt Angle and Compact 185mm Height

Product Categories
Dongguan Juzhuo Precision Machinery Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Hybrid Harmonic + Cycloidal Drive 5th Axis Rotary Table with ±110 deg Tilt Angle and Compact 185mm Height

Certification : ISO9001,CE

Tilt Angle : ±110 deg

Brand Name : Juzhuo

Total height : 185 mm

Packaging Details : Wooden Box

Model Number : JZ-J160L

Center hole diameter : Φ30 mm

MOQ : 1 set

Delivery Time : According To Customer Needs

Clamp Screw-hole PCD : Φ135/Φ80 mm

Payment Terms : T/T

Price : Negotiable

Diameter : Φ160 mm

Supply Ability : 1000set/month

Place of Origin : Guangdong, China

Distance of : 55 mm

Contact Now

Hybrid Harmonic + Cycloidal Pin Gear 5-Axis Rotary Table

The JZ-J160L utilizes a hybrid drive system combining harmonic reducer on the rotary axis with cycloidal pin-gear reducer on the tilt axis, achieving optimal balance between precision positioning and load-bearing capacity.

With a table diameter of Φ160mm and compact overall height of 185mm, this rotary table is ideal for mid-size parts requiring both accuracy and substantial cutting torque. The compact footprint conserves valuable working space within your vertical machining center.

Best for: General contract machining shops, automotive fixture parts, medium-size mold inserts.

Key Features
  • Large, high-precision cross roller bearing system
  • Japanese-origin ultra-precision transmission structure
  • Multiple sealing design for enhanced protection
  • High torque, high precision, and high rigidity performance
Technical Specifications
Specification/Model Unit JZ-J160L
Diameter Φmm Φ160
Distance of axes centers mm 55
Total height mm 185
Center hole diameter Φmm Φ30
Clamp Screw-hole PCD mm Φ135/Φ80
Tilt Angle deg ±110
Axial Direction Performance
Reduction Ratio 80 | 89
Minimum Unit deg 0.001 | 0.001
Transmission Accuracy sec 30″ | 30″
Repeatability Accuracy sec 10″ | 10″
Output Load Torque Nm 101 | 209
Allowable Maximum Speed r.p.m 45 | 45
Brake Torque Nm 127 | 230
Maximum Workpiece Load (0° Horizontal) KG 18
Maximum Workpiece Load (0°-90° Tilt) KG 15
Weight KG 57
Hybrid Harmonic + Cycloidal Drive 5th Axis Rotary Table with ±110 deg Tilt Angle and Compact 185mm Height
Applications

Suitable for job shops, mold factories, and machine-tool OEM manufacturers:

  • Mold & Die making (injection mold, die-casting mold)
  • Aerospace & aviation complex structural components
  • Medical implant precision parts
  • Automotive fixture & small complex components
  • 3C electronics precision hardware
  • Education & training CNC lab equipment
Why Choose Our JZ-Series 5th Axis Table
  • Lower Investment for 5-Axis Capability: Retrofit your existing vertical machining center with our trunnion rotary table instead of purchasing expensive complete 5-axis machine tools, significantly reducing capital investment.
  • Long-Term Accuracy Retention: High-grade bearing system combined with premium transmission core minimizes wear, maintaining stable accuracy even during continuous production cycles.

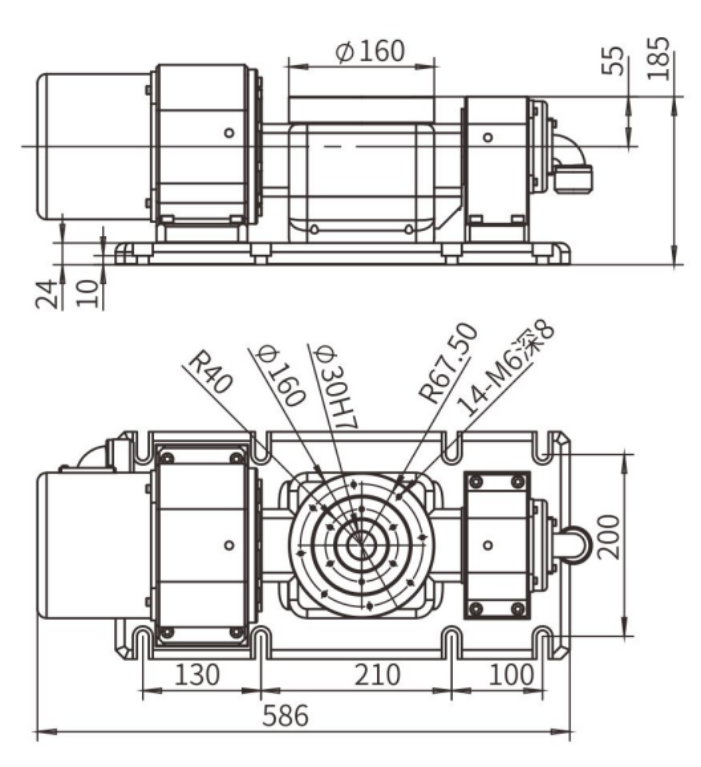

  • Ready-to-Install Mechanical Dimensions: Complete 2D drawings available for download. Standard mounting holes, center bore, and PCD clamping screw holes enable fast fixture setup.
  • Clear Model Selection: Comprehensive range including compact light-load (JZ-J110L), mid-size (JZ-J160 / JZ-J160L), and heavy-load (JZ-J200L) models to match your specific workpiece weight and cutting requirements.
  • Technical Support & Documentation: Comprehensive documentation including dimension drawings, wiring instructions, and installation guidance for both integrators and end-users.
