Free Fall Metal Detector Plastic Master Batch Granule Separator JZD-P16

user : powder,granular products

Search Coil Diameter : customized

type : Pipeline metal detector

Usage : Security Inspection

material : stainless 304 and 316

Display : LCD Digital Display

sensitivity : other

operating frequency : Other

control panel : LCD display

MOQ : 1

raw material : SUS304/316

Price : $3,500

Place of Origin : Guangdong, China

Product name : Food Metal Detector

the diameter of transportation hopper : 50~150mm(customized)

Model Number : JZD-P16

Record of product quantities : 100kinds of different product parameter

waterproof level : IP66

the way of exlusion : sound and light alarm,air piracy exclusion automatically

Contact Now

Free Fall Metal Detector Separator for Plastic Master Batch Granules JZD-P16

Product Overview

Free Fall Metal Detector Separator designed specifically for plastic master batch granules, providing reliable metal detection and separation in industrial applications.

Applications

Food industry
Chemical industry
Pharmaceutical industry
Plastic industry
Packaging industry

Function

Detects and separates all types of metals including copper, iron, zinc, stainless steel, and other metallic contaminants.

Key Features

Detection method: Free-Falling body/Gravity
Suitable material: Grain or powder
Separate ways: Automatic separation
Advantage: High precision and simple installation

Technical Parameters

Operating voltage: 220 VAC (+/-10%, 50/60 Hz)
Input current: 80/160 mA
Ambient temperature: -10/60 degrees
Case Material: Stainless Steel
Contact parts with material: PP plastic and PTFE
Compressed air: 4-8 kg, connected with 6-8 mm hose
Gas consumption: 0.6 liters each separate action
Level of protection: IP 54
Separation time: 0.2 - 2.5 seconds (No level can be adjusted)
Detection accuracy: 0-10 stepless adjustable (recommended transferred to scale 9)
Detection method: Plastic granules with falling body
Material characteristics: Dry, no long-fiber, non-conductive, particles less than 8 mm

Specifications

Type (Internal Detection Tube Dia)	Capacity (l/h)	Detection Accuracy
80 type	5000 l/h	Iron: 0.7mm, Stainless Steel: 1.5mm, Copper: 1.2mm
100 type	10000 l/h	Iron: 0.8mm, Stainless Steel: 2.0mm, Copper: 1.5mm
150 type	20000 l/h	Iron: 1.2mm, Stainless Steel: 2.3mm, Copper: 2.0mm
200 type	40000 l/h	Iron: 1.5mm, Stainless Steel: 2.5mm, Copper: 2.0mm
250 Type	65,000 l/h	Iron: 2.0mm, Stainless Steel: 3.0mm, Copper: 2.5mm

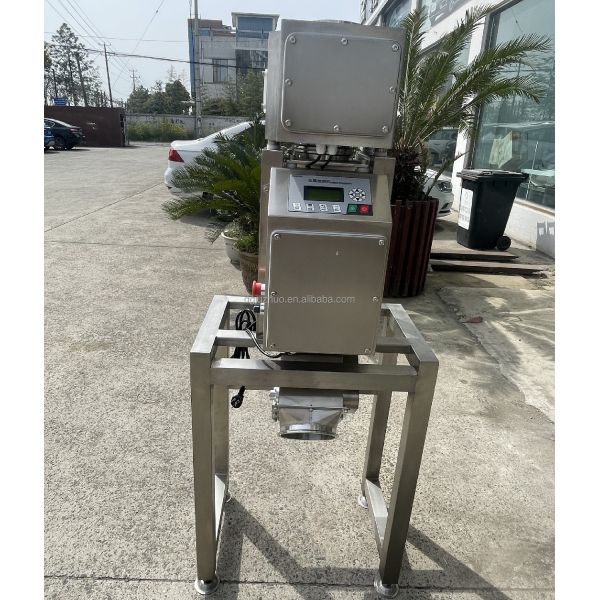

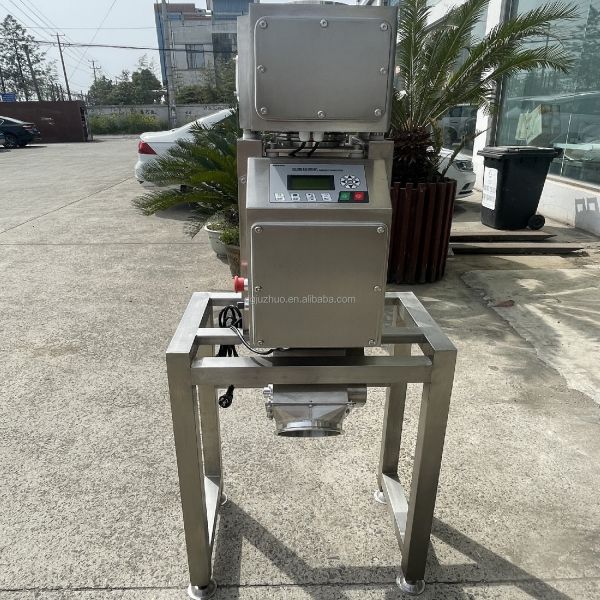

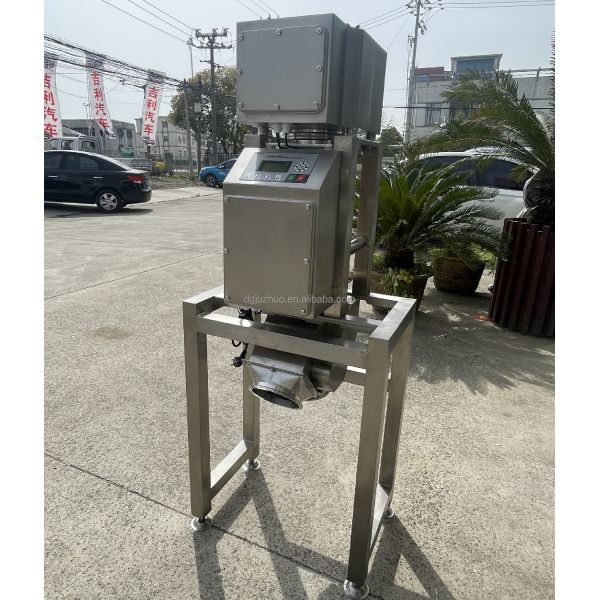

Product Images

Free Fall Metal Detector Plastic Master Batch Granule Separator JZD-P16
