CNC Machining 4th Axis Roller Cam Rotary Table For Precision Engineering

  • 1
  • 2

Vertical Mount Perpendicularity : 0.02 Mm

Table Diameter : Varies (commonly 170mm To 630mm)

Standard Locating Key : 18H7

Price : Negotiable

Name : Roller Cam Rotary Table

Place Of Origin : Dongguan,China

Brand Name : JuZhuo

Drive Mechanism : Roller Cam

Supply Ability : 1000set/month

MOQ : 1set

Packaging Details : Wooden Box

Axial Runout : 0.01~0.015 Mm

Rotation Angle : 360 Degrees Continuous Rotation

Model Number : NCT

Payment Terms : T/T

Delivery Time : According To Customer Needs

Motor Type : Stepper Or Servo Motor Compatible

Certification : ISO9001,CE

Radial Runout : 0.01 Mm

Contact Now

CNC Machining 4th Axis Roller Cam Rotary Table
Standard Locating Key 18H7 designed for rotary indexing and accurate angular positioning
Product Overview
The 4th Axis Roller Cam Rotary Table is a high-precision rotary indexing solution designed to enhance the capabilities of CNC machining centers and automation systems. This advanced rotary table offers exceptional accuracy and reliability, making it an essential component for applications requiring precise rotational positioning and indexing.
Key features include remarkable horizontal mount parallelism within 0.02 mm tolerance, ensuring perfect alignment during operation. The table is compatible with both stepper and servo motors and supports leading servo brands including Fanuc, Syntec, and Huazhong.
Key Features
  • High precision with table flatness of 0.02 mm
  • 360 degrees continuous rotation for versatile machining operations
  • Reliable roller cam drive mechanism ensuring smooth and accurate motion
  • Standard T-slot size of 12H7 for secure workpiece mounting
  • Standard accessories including oil sight glass, lifting eye, oil filling port, and main & tailstock brake port
  • Ideal for applications requiring 4th Axis Indexing Rotary Table functionality
Technical Specifications
Center Distance Tolerance of Holes ±0.015 mm
Table Flatness 0.02 mm
Axial Runout 0.01~0.015 mm
Radial Runout 0.01 mm
Standard Locating Key 18H7
Horizontal Mount Parallelism 0.02 mm
Table Diameter Varies (170mm to 630mm)
Application CNC Machining, Automation, Precision Positioning
Motor Type Stepper or Servo Motor Compatible
Model Specifications
Model Table Dia Center Bore Reduction Ratio Load (Without Tailstock) Load (With Tailstock) Indexing Accuracy Repeat Accuracy
NCT170 Φ170mm Φ50H7 1:40 75kg 150kg <30 arc.sec <8 arc.sec
NCT200 Φ200mm Φ50H7 1:40 - - - -
NCT250 Φ250mm Φ50H7 1:60 100kg - ±20 arc.sec 33 arc.sec
NCT320 Φ320mm Φ90H7 1:60 180kg 350kg ±20 arc.sec 35 arc.sec
NCT400 Φ400mm - 1:60 260kg 550kg ±20 arc.sec 4 arc.sec
NCT630 Φ630mm - 1:60 500kg 1200kg ±10 arc.sec -
Product Image

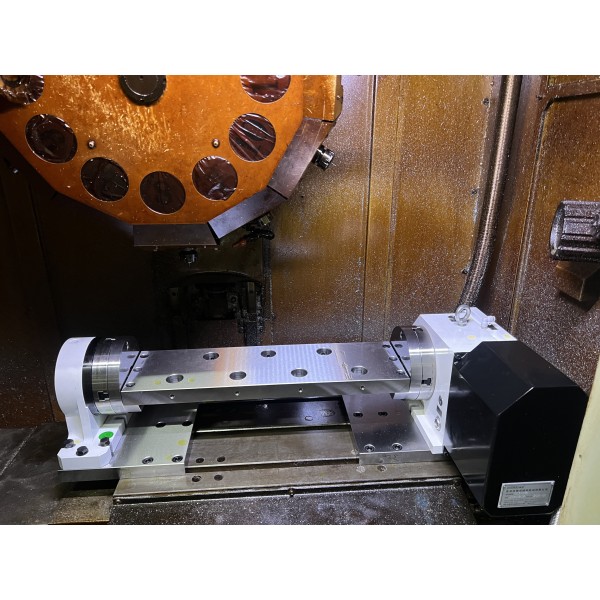

CNC Machining 4th Axis Roller Cam Rotary Table For Precision Engineering
Applications
The JuZhuo 4th Axis Roller Cam Rotary Table is widely used in aerospace component machining, automotive part manufacturing, mold making, and precision engineering. Its ability to rotate workpieces along a fourth axis enables intricate operations like contouring, drilling, milling, and grinding without manual repositioning.
Ordering Information
Brand: JuZhuo | Model: NCT | Origin: Dongguan, China | Certifications: ISO9001, CE
Minimum Order: 1 set | Supply Ability: 1000 sets/month | Packaging: Wooden Box
Delivery: Arranged per customer needs | Payment: T/T (Telegraphic Transfer)
Support & Services
Comprehensive technical support includes installation assistance, setup guidance, programming help, and troubleshooting. We provide detailed user manuals, maintenance guides, repair services, and training sessions to ensure optimal performance and longevity.
Packaging & Shipping
Each unit is securely wrapped with protective materials and placed in sturdy reinforced cardboard or wooden crates. Shipping options include standard ground freight, expedited air freight, or courier services with tracking information provided.
