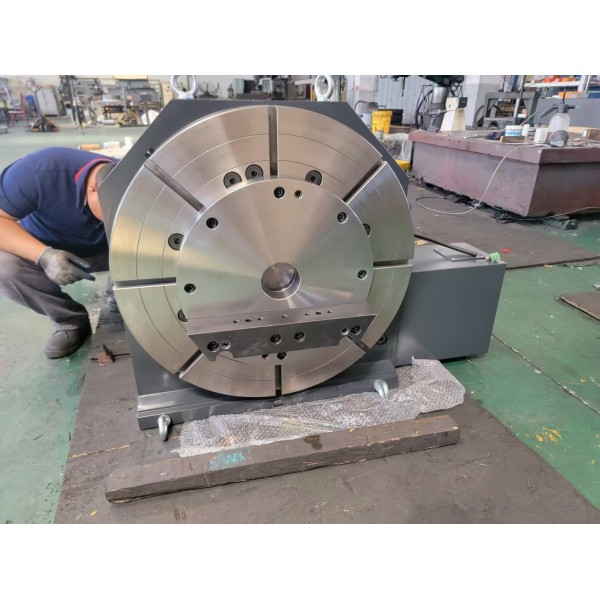

Worm Gear Rotary Table 4th Axis
Product Overview
The 4th Axis Worm Gear Rotary Table is an advanced precision rotary device designed for modern machining and automation systems. Featuring a robust double-lead worm gear set transmission structure, this rotary table ensures exceptional accuracy and smooth operation for precise rotational positioning and indexing.
The double-lead worm gear design enhances transmission efficiency and load-carrying capacity, delivering reliable performance under heavy-duty working conditions. Engineered to accommodate a wide range of workpiece moments of inertia from 259 to 159,000 Kg*cm*s, this table handles both small components and large workpieces with equal ease.
Key Features
- Product Name: 4th Worm Gear Rotary Table
- Type: Worm Gear Rotary Positioning Table
- Total Thickness Range: 190mm to 1150mm
- Total Reduction Ratio: 1:180 to 1:2160
- Maximum Workpiece Moment of Inertia: 259 to 159,000 Kg*cm*s
- Maximum Driving Torque: 300 to 30,000 N*m
- Horizontal Load Capacity: 250kg to 35,000kg
- Minimum Indexing Unit: 0.001°
Technical Specifications
| Material |
High-grade Steel |
| Servo Motor Power |
≥1.0kW ~ ≥11.3kW (Max ≥3.8kW For Partial Heavy Models) |
| Drive Mode |
Servo Motor Drive |
| Application |
Precision Machining And Milling |
| Max Driving Torque |
300 ~ 30,000 N*m |
| Max Rotation Speed |
1.0 ~ 11.1 R/min |
| Total Reduction Ratio |
1:180 ~ 1:2160 |
| T-slot Width |
6-12mm ~ 12-28mm |
| Minimum Indexing Unit |
0.001° |
| Horizontal Load Capacity |
250kg ~ 35,000kg |
Applications
The JuZhuo 4th SKT Series Rotary Table with Worm Gear Drive is essential for high-precision machining and milling applications. Certified by ISO9001 and CE standards, this CNC Fourth Axis Worm Gear Table is widely used in aerospace, automotive, mold manufacturing, and metalworking industries.
Its ability to handle servo motor power from ≥1.0kW up to ≥11.3kW allows it to deliver exceptional torque and smooth rotational movement, critical for complex milling and cutting operations. The hydraulic clamp torque ranging from 300 to 2000 N*m enhances stability and accuracy during machining.
Customization & Ordering
The JuZhuo 4th SKT Series features a robust worm gear ratio ranging from 1:90 to 1:220, ensuring precise rotational positioning. Crafted from high-grade steel and driven by servo motor drive, it guarantees durability and accurate control.
Minimum order quantity: 1 set. Each unit is packaged in wooden boxes for safe delivery. Delivery time is tailored according to customer needs, with a supply ability of 1000 sets per month. Payment terms: T/T.
Support & Services
Comprehensive technical support includes detailed user manuals for installation, operation, and maintenance. Our technical team provides troubleshooting, repair guidance, and replacement parts to ensure optimal performance.
We offer calibration, customization, and upgrade services to meet specific requirements. Regular maintenance is recommended to prolong lifespan and maintain accuracy.
Packaging & Shipping
Each unit is securely placed in sturdy wooden crates with protective padding to prevent damage during transit. We offer flexible shipping options including air freight, sea freight, and express courier services.
Shipping times typically range from 7 to 30 days depending on destination and method. Tracking information is provided upon dispatch. Customized packaging and shipping solutions available for bulk orders.
Frequently Asked Questions
What is the brand and model number of this Worm Gear Rotary Table?
The brand name is JuZhuo and the model number is 4th SKT Series.
Where is the 4th Worm Gear Rotary Table manufactured?
It is manufactured in Dongguan, China.
What certifications does this product have?
The 4th Worm Gear Rotary Table is certified with ISO9001 and CE.
What is the minimum order quantity and how is the product packaged?
The minimum order quantity is 1 set, and it is packaged in a wooden box.
What are the payment terms and delivery time for this product?
The payment terms are T/T, and the delivery time is according to customer needs.
