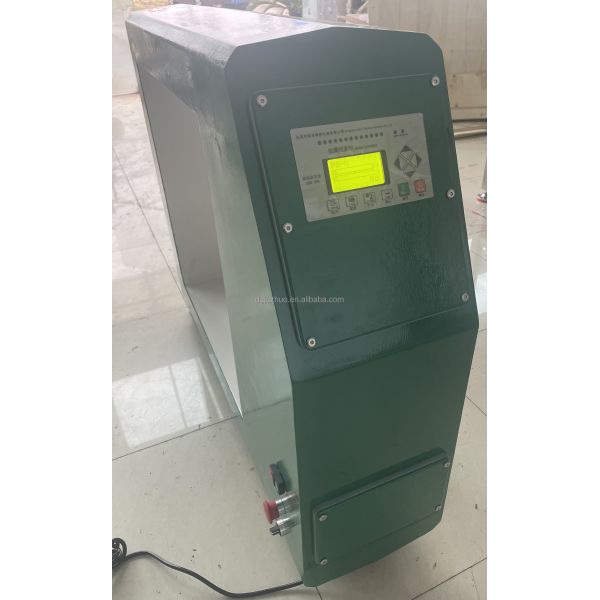

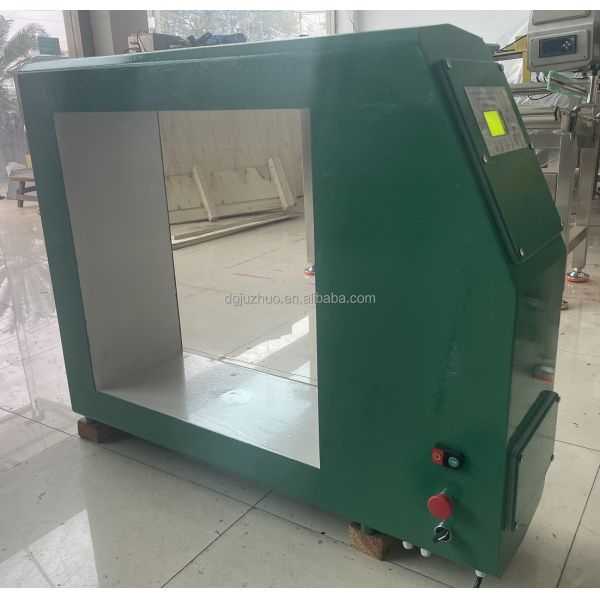

Industrial tunnel conveyor type metal detection sensor JZD-300
Widely Using scope
Model JZD-300 series digital style of intelligent metal detector which is mainly used for checking metal chips inside the seafood,coffee,cereal,seasoning etc industry
Features:

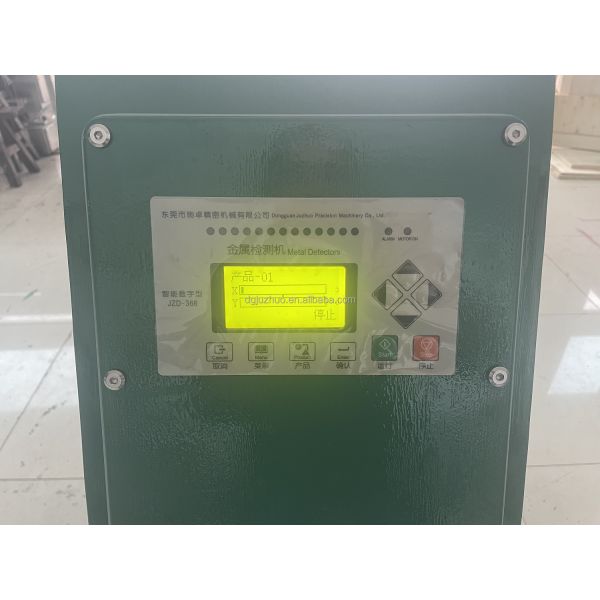

1, LCD touch screen with Simple operation menu, all settings and using are simple and convenient without any adjustment for operators.
2,All the equipment parameters of detection are locked automatically, when use it, you can just place the product that needs detected on the conveyors, then the system of detection will recognize automatically.
3, It can detect the iron, stainless steel, copper, Al and all kind of metal chips which mixed with products. as well as, some of non-metal that transmitting electricity and magnetism.
4,can record up to 15kinds of different products, parameters of detection and the most simple operation is replacement of different products occasions frequently.
5,The style of conveyors is opening and unloading structure, for day-to-day cleaning.
High sensitivity detection :
1. using the detection circuit with specially high-performance design and with advanced digital signal processing algorithms. The actual detection proved that it reached the most advanced international level.
2. against the variety of detector products , with the learning functions of automatic identification. Overcome the effect of products material efficiently.
3. detection probe is designed specially and improved the detection sensitivity further. Improve the detection sensitivity.
Good stability
1. Adopting DSP, DDS and many other digital technology to process testing signal. Comparing with traditional simulation detector ,it has the advantage of universal function, stable capability, high credibility.
2. Timber known, fine craft, solid structure, good-looking in appearance, durability.
3. main structure adopted international SUS304 manufacturing, the sandblasted surface treatment, good corrosion resistance, good-looking and easy to clean.
Technical Parameters
Model
JZD-300
The Width of inspection window (mm)
400
400(customization)
The Height of inspection(mm)
100
120
150
200
250
300
350
400
Detection Sensitivity
Fe(Φmm)
≥0.6
≥0.8
≥1.0
≥1.2
≥1.5
≥2.0
≥2.5
≥3.0
Non-Fe(Φmm)
≥1.0
≥1.2
≥1.5
≥2.5
≥3.0
≥3.5
≥4.0
≥4.5
304SUS(Φmm)
≥1.2
≥1.5
≥2.0
≥2.5
≥3.0
≥3.5
≥4.0
≥4.5
Alarm
audible and visual alarm ,automatic stop
Raw material
SUS304
Normal machine size (mm)
1600(L)m×900(W)mm×1000(H)mm(Based of normal size)
Net Gross
330kg (based of normal size)
Electrical source (Power)
110V/220V/380V 50Hz/60Hz (Power)90W
Conveyor speed
25-30m/min(can design it according customer's requirements)
Conveyor height
650mm±50mm (normal ) can manufacture it as customer's need
Noted:
the above sensitivity judged by the machine without bearing any parts,the actual sensitivity have relation with nature and the temperature of the products etc,can install auto -rejection equipments according custom's requirements
