4 Axis CNC Rotary Table , Four Axis Linkage Direct Drive Rotary Table

weight (kg) : 80

IP Rating : IP65

Model : DAR-170

center height : 135mm

Machine Type : CNC rotary table, Direct-drive 4axis rotary table

brake torque : 150N.M

Table loading capacity : 50kg

T-slot size : 12H8

warranty : 3 Years

Axis Orientation : Horizontal

machinery test report : Provided

Table diameter : 170

Brand Name : Juzhuo

video outgoing-inspection : Provided

Products name : 4 Axis CNC Rotary Table

Place of Origin : Guangdong, China

MOQ : 1

Contact Now

Four-axis Linkage Direct-drive Rotary Table
Direct-drive Torque Motor 4th Axis Rotary Table DDR Rotary Table Four-axis Linkage Direct-drive Rotary Table
Product Features
  • Adopts a direct-drive motor with high acceleration, high torque, high precision, and zero backlash
  • Built-in pneumatic power brake system
  • The rotary axis uses large-bore, high-rigidity bearings
  • Suitable for high-speed indexing processing of blades, medical instrument parts, 3C product parts, etc.
Technical Specifications (Model: DAR-170)
Item/Model Unit Specifications
Table Diameter mm 170
Center Height mm 135
T-slot Size - 12H8
Table Load Capacity kg 50
Axis Orientation - Horizontal
Hollow Bore Diameter mm 40
Max. Rotary Table Speed r/min 200
Motor Rated Torque N*m 65
Motor Peak Torque N*m 309
Brake Torque N*m 150
IP Rating - IP65
Motor Cooling - Natural Cooling
Cable Outlet Type - Aviation Plug
Overall Weight kg 48

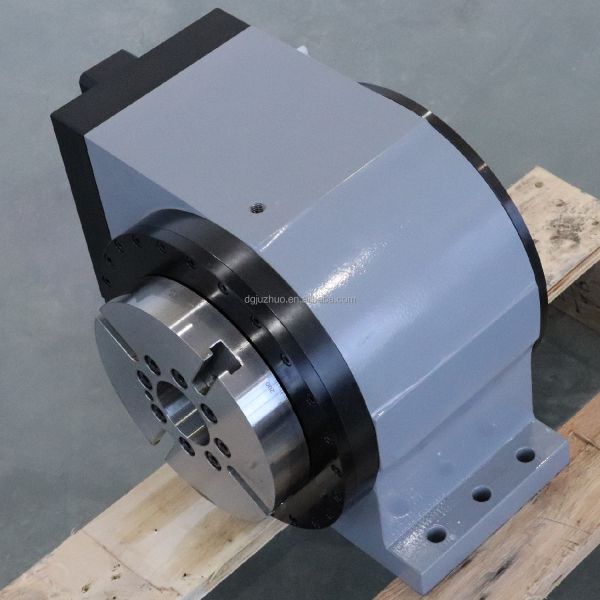

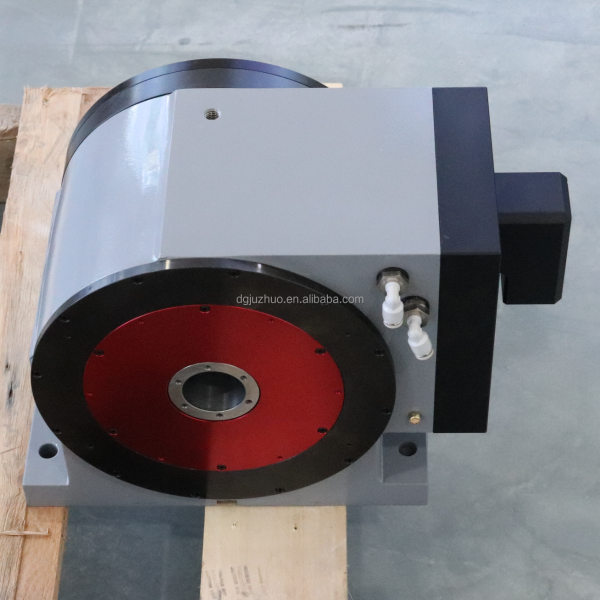

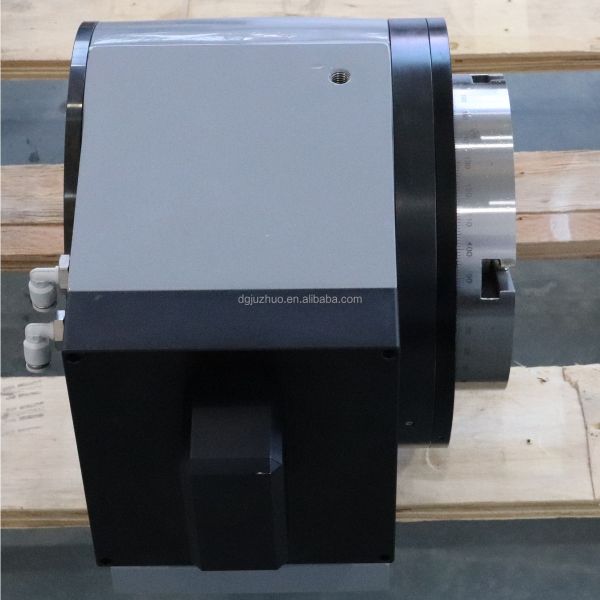

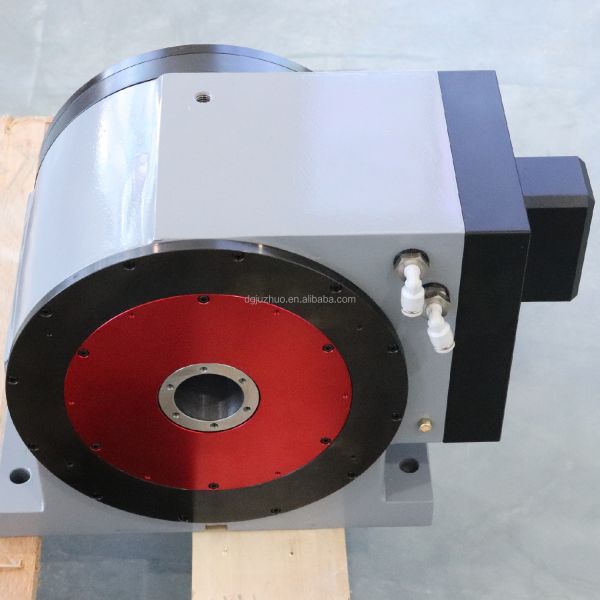

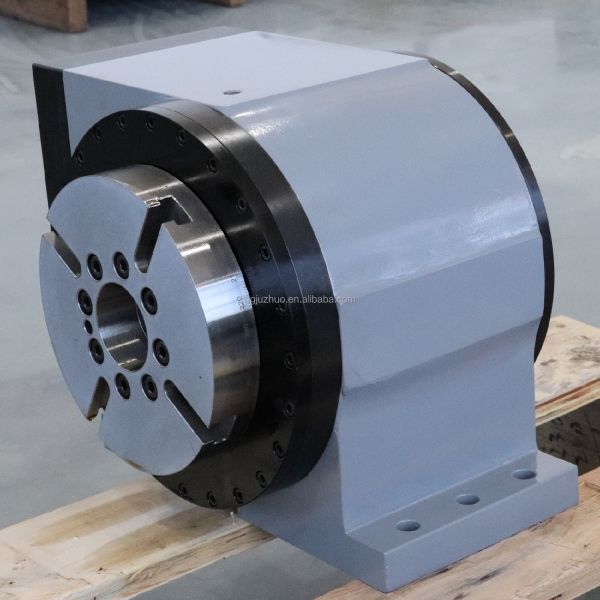

Product Images
4 Axis CNC Rotary Table , Four Axis Linkage Direct Drive Rotary Table 4 Axis CNC Rotary Table , Four Axis Linkage Direct Drive Rotary Table 4 Axis CNC Rotary Table , Four Axis Linkage Direct Drive Rotary Table 4 Axis CNC Rotary Table , Four Axis Linkage Direct Drive Rotary Table 4 Axis CNC Rotary Table , Four Axis Linkage Direct Drive Rotary Table 4 Axis CNC Rotary Table , Four Axis Linkage Direct Drive Rotary Table 4 Axis CNC Rotary Table , Four Axis Linkage Direct Drive Rotary Table 4 Axis CNC Rotary Table , Four Axis Linkage Direct Drive Rotary Table 4 Axis CNC Rotary Table , Four Axis Linkage Direct Drive Rotary Table 4 Axis CNC Rotary Table , Four Axis Linkage Direct Drive Rotary Table 4 Axis CNC Rotary Table , Four Axis Linkage Direct Drive Rotary Table

Product Tags:

4 Axis CNC Rotary Table



Horizontal CNC Rotary Table



Linkage Direct Drive Rotary Table
